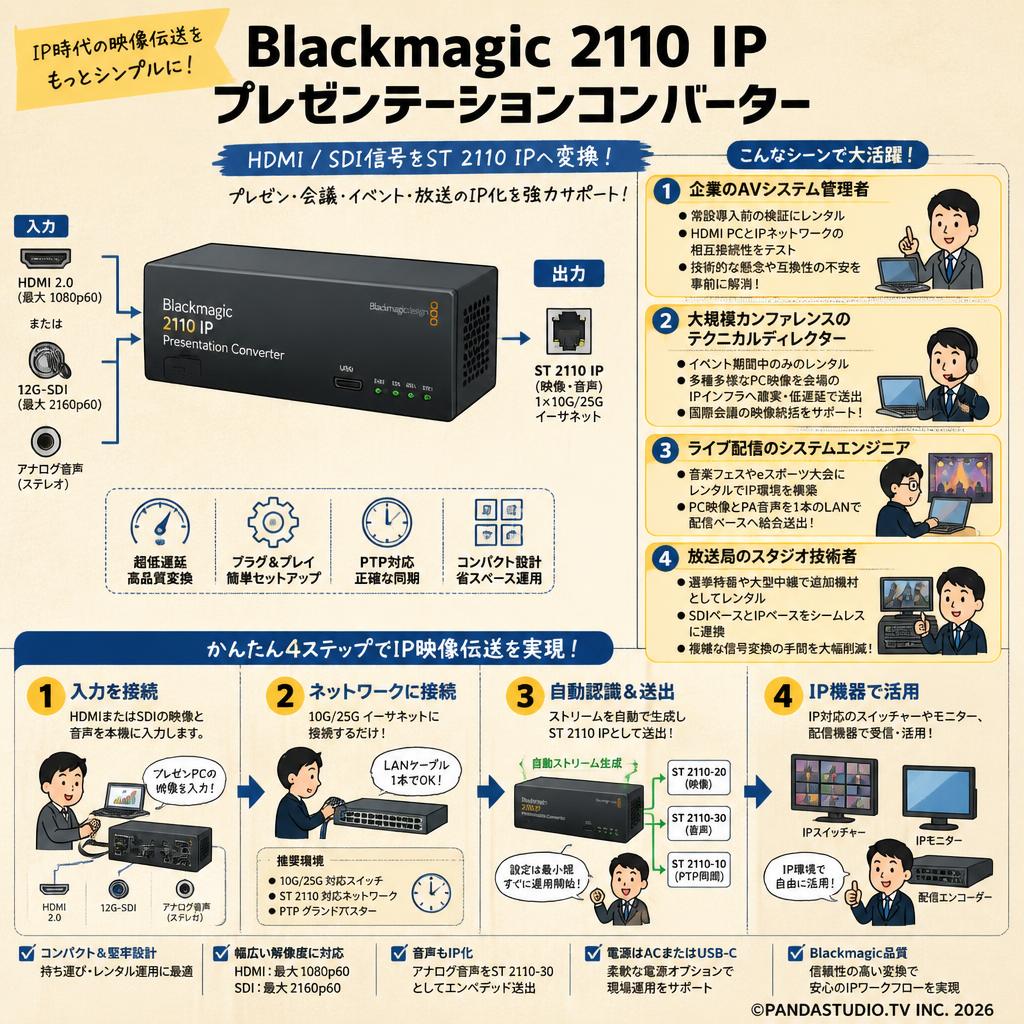

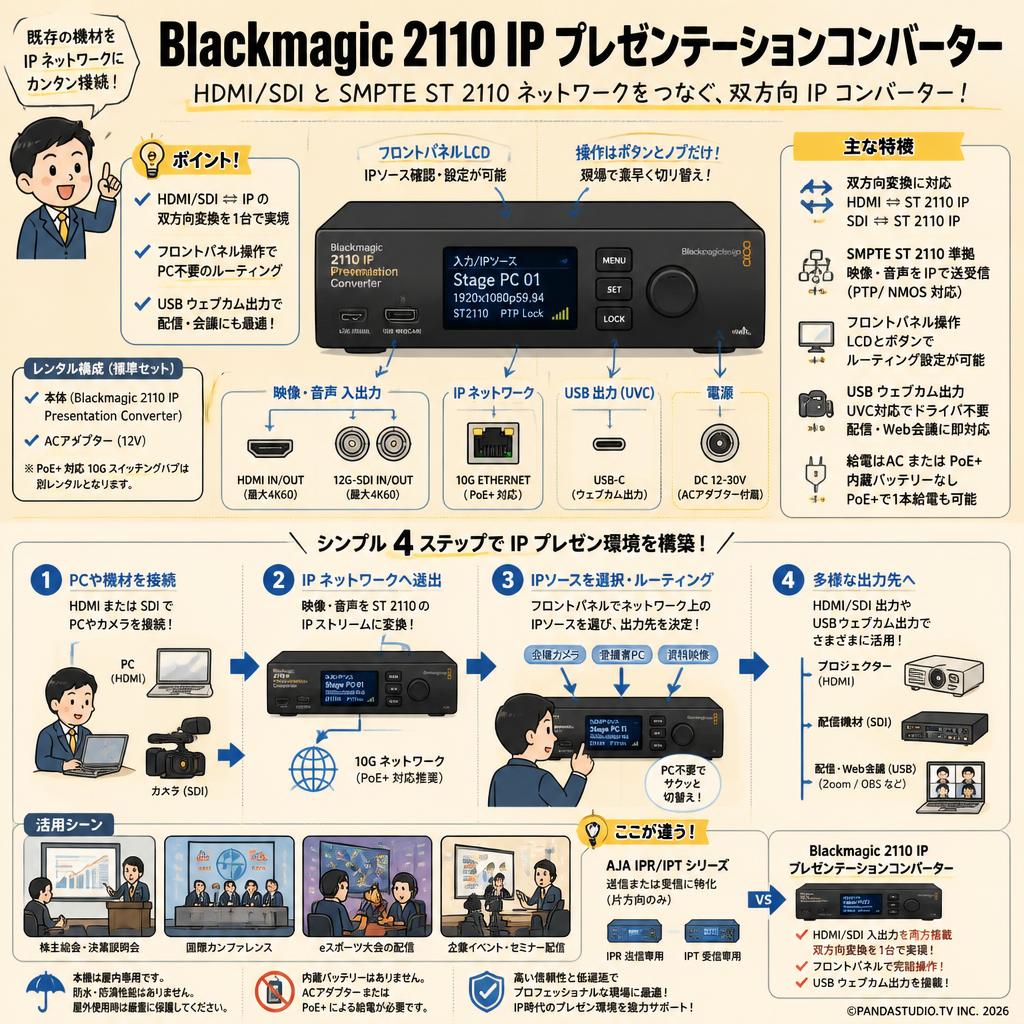

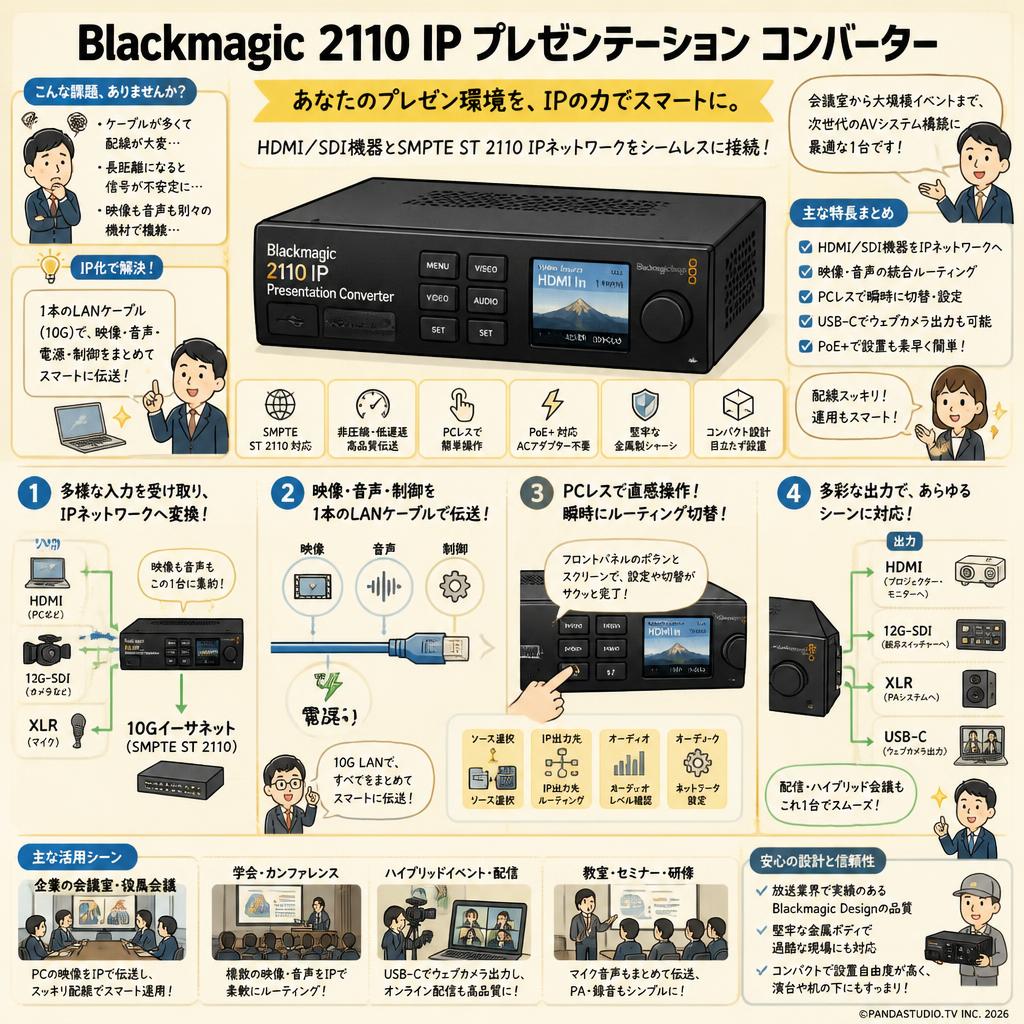

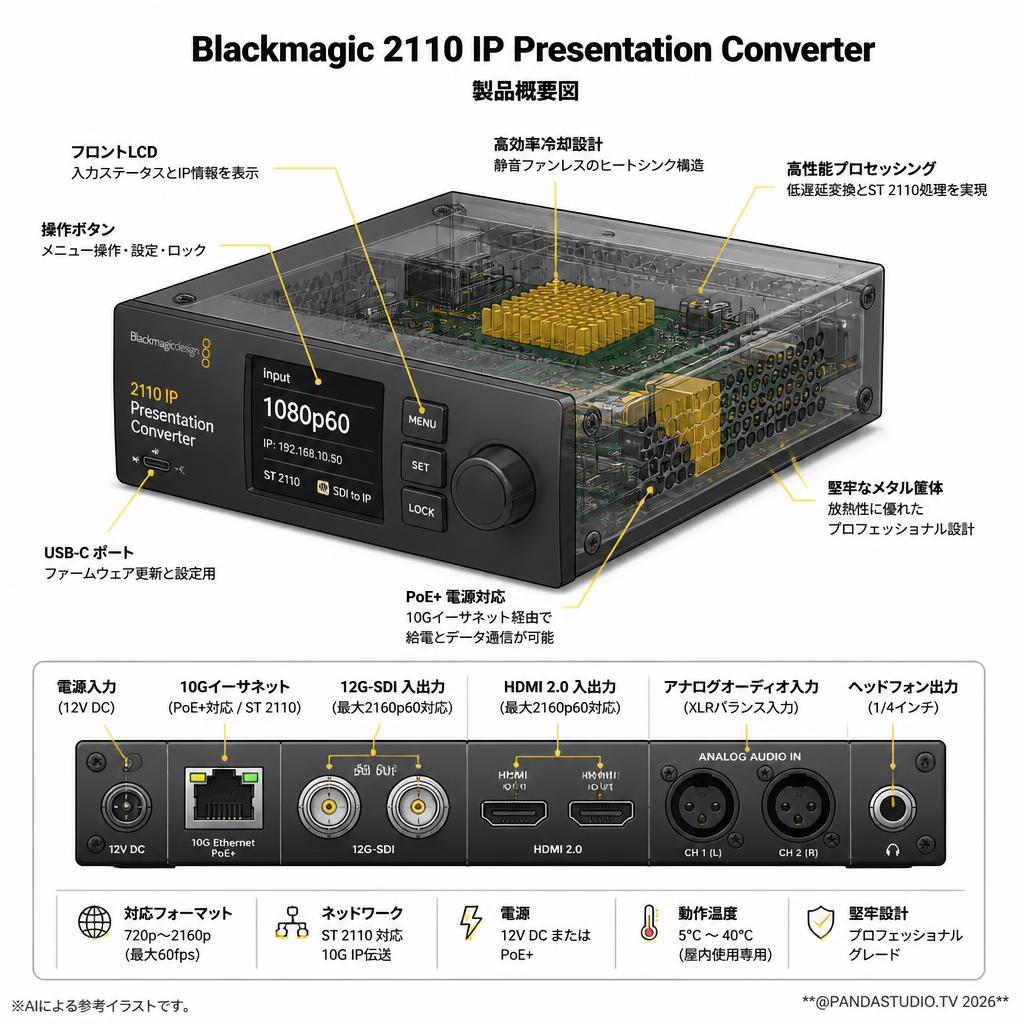

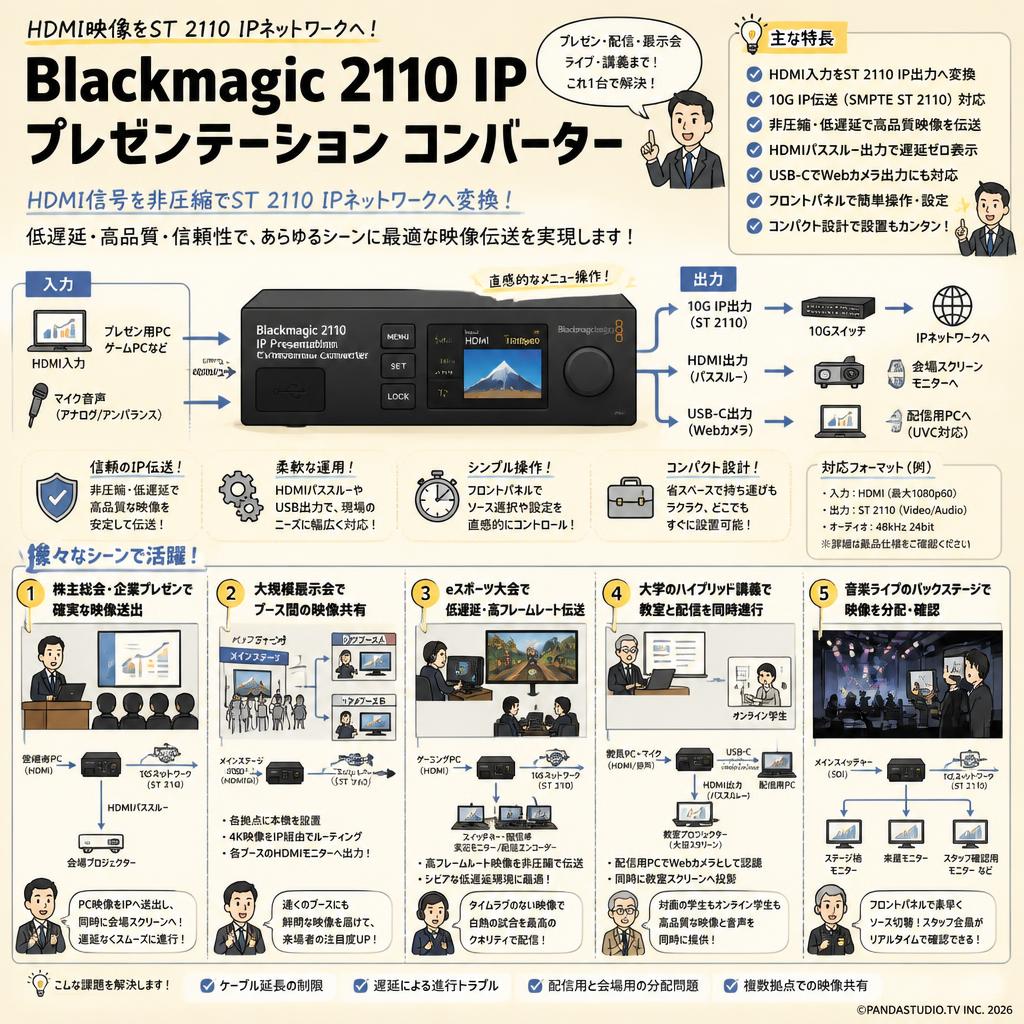

接続 |
PC Video Inputs |
1 x front USB‑C plus 1 x rear USB‑C with 45W host charging capability. |
HDMI 2.0ビデオ入力 |
1 |
HDMI2.0ビデオ出力 |
1 |
SDIビデオ出力
|
1 |
Automatically standards converted to destination |
SDIレート |
270Mb, 1.5G, 3G, 6G, 12G. |
SMPTE ST-2110 IP Video Inputs |
1 x 10G Ethernet |
SMPTE ST-2110 IP Video Outputs |
1 x 10G Ethernet |
アナログオーディオ入力 |
2 x Combination 3-pin XLR / TRS 1/4 inch Jack connectors, switchable between +24dB line and mic level with support for +48V phantom power. |
アナログオーディオ出力
|
2 channels of professional balanced analog audio with 3-pin XLR connectors. |
1 x 6.35 mm headphone jack. |
SDIオーディオ出力 |
16 Channels embedded in SD/HD/2K/UHD/4K. |
HDMIオーディオ入力 |
8 Channels embedded in SD/HD/UHD/4K. |
HDMIオーディオ出力 |
8 Channels embedded in SD/HD/UHD/4K. |
USB |
2 x USB‑C 3.1 Gen 1 (up to 5 Gb/s). |
イーサネット |
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates. |
SDIビデオフォーマット |
SDビデオフォーマット |
525i59.94 NTSC、625i50 PAL |
HDビデオフォーマット
|
720p50、720p59.94、720p60 |
1080i50、1080i59.94、1080i60 |
1080p23.98、1080p24、1080p25、1080p29.97、1080p30、1080p50、1080p59.94、1080p60 |
1080PsF23.98、1080PsF24、1080PsF25、1080PsF29.97、1080PsF30 |
2Kビデオフォーマット
|
2Kp23.98 DCI、2Kp24 DCI、2Kp25 DCI、2Kp29.97 DCI、2Kp30 DCI、2Kp50 DCI、2Kp59.94 DCI、2Kp60 DCI |
2KPsF23.98 DCI、2KPsF24 DCI、2KPsF25 DCI、2KPsF29.97 DCI、2KPsF30 DCI |
Ultra HDビデオフォーマット |
2160p23.98、2160p24、2160p25、2160p29.97、2160p30、2160p50、2160p59.94、2160p60 |
4Kビデオフォーマット |
4Kp23.98 DCI、4Kp24 DCI、4Kp25 DCI、4Kp29.97 DCI、4Kp30 DCI、4Kp50 DCI、4Kp59.94 DCI、4Kp60 DCI |
SDI規格 |
SMPTE 259M、SMPTE 274M、SMPTE 296M、SMPTE 424M、SMPTE 425M Level AおよびB、SMPTE 2081‑1、SMPTE 2081‑10、SMPTE 2082‑10、SMPTE ST2108‑1、SMPTE ST2110‑20、SMPTE ST2110‑21、SMPTE ST2110‑30、SMPTE ST2110‑40. |
対応SDIメタデータ |
RP 188/SMPTE 12M-2 and closed captioning. |
対応マルチレート |
SDI video connections are switchable between SD/HD/2K/UHD and 4K. |
SDIオーディオサンプリング |
Television standard sample rate of 48 kHz and 24‑bit. |
SDIビデオサンプリング |
4:2:2、4:4:4 |
SDI色精度
|
8, 10, 12-bit RGB 4:4:4 in 2D modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all 2D modes. |
8, 10, 12-bit RGB 4:4:4 in 3D modes up to 2Kp60 DCI and 8, 10-bit YUV 4:2:2 in all 3D modes. |
SDIカラースペース |
REC 601、REC 709およびREC 2020 |
HDRサポート |
HDR static metadata packing, HLG and PQ transfer characteristics. |
HDMIビデオフォーマット |
SDビデオフォーマット |
525i59.94 NTSC、625i50 PAL |
HDビデオフォーマット
|
720p50、720p59.94、720p60 |
1080i50、1080i59.94、1080i60 |
1080p23.98、1080p24、1080p25、1080p29.97、1080p30、1080p50、1080p59.94、1080p60 |
Ultra HDビデオフォーマット |
2160p23.98、2160p24、2160p25、2160p29.97、2160p30、2160p50、2160p59.94、2160p60 |
4Kビデオフォーマット |
4Kp23.98 DCI、4Kp24 DCI、4Kp25 DCI、4Kp29.97 DCI、4Kp30 DCI、4Kp50 DCI、4Kp59.94 DCI、4Kp60 DCI |
HDMIオーディオサンプリング |
Television standard sample rate of 48 kHz and 24-bit. |
HDMIビデオサンプリング |
4:4:4、4:2:2および4:2:0 |
HDMI色精度 |
8, 10 and 12-bit |
HDMIカラースペース |
REC 601、REC 709およびREC 2020 |
HDRサポート |
HDR static metadata packing, HLG and PQ transfer characteristics. |
HDR Configuration |
HDMI 2.0 supports Deep Color and HDR. Automatically configures to connected display. |
対応マルチレート |
HDMI video connections are switchable between SD/HD/UHD and 4K. |
コピー防止 |
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
IPビデオ準拠 |
SMPTE 2110-20(非圧縮ビデオ) |
IGMP v2 |
SMPTE 2110-21(トラフィックシェーピング)
|
Sender: Narrow |
Receiver: Narrow, Wide Synchronous, Asynchronous |
SMPTE 2110-30 (PCM) |
Audio Conformance level: Level C |
SMPTE 2110-40(補助データ) |
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
Codec |
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. |
Precision Time Protocol(PTP)
|
IEEE 1588-2008 (PTP v2) |
ST 2059-1 |
ST 2059-2 |
NMOS IS-04(発見と登録)
|
v1.3.2 |
Peer-to-peer via mDNS/DNS-SD |
NMOS IS-04(発見と登録) |
v1.1.2 |
NMOS BCP-002-01 |
Natural Grouping |
NMOS BCP-004-01 |
Receiver capabilities |
コントロール |
内蔵コントロールパネル |
6 buttons, spin knob and 2.2 inch color display for menu and settings. Front speaker on/off button. |
電源条件 |
電源 |
1 x Internal 100 - 240V AC 50/60Hz with IEC C14 socket. |
使用電力 |
TBA |
作動環境 |
5° to 40° C (41° to 104° F) |
保管温度 |
-20° to 45° C (-4° to 113° F) |
相対湿度 |
0% to 90% non‑condensing |
