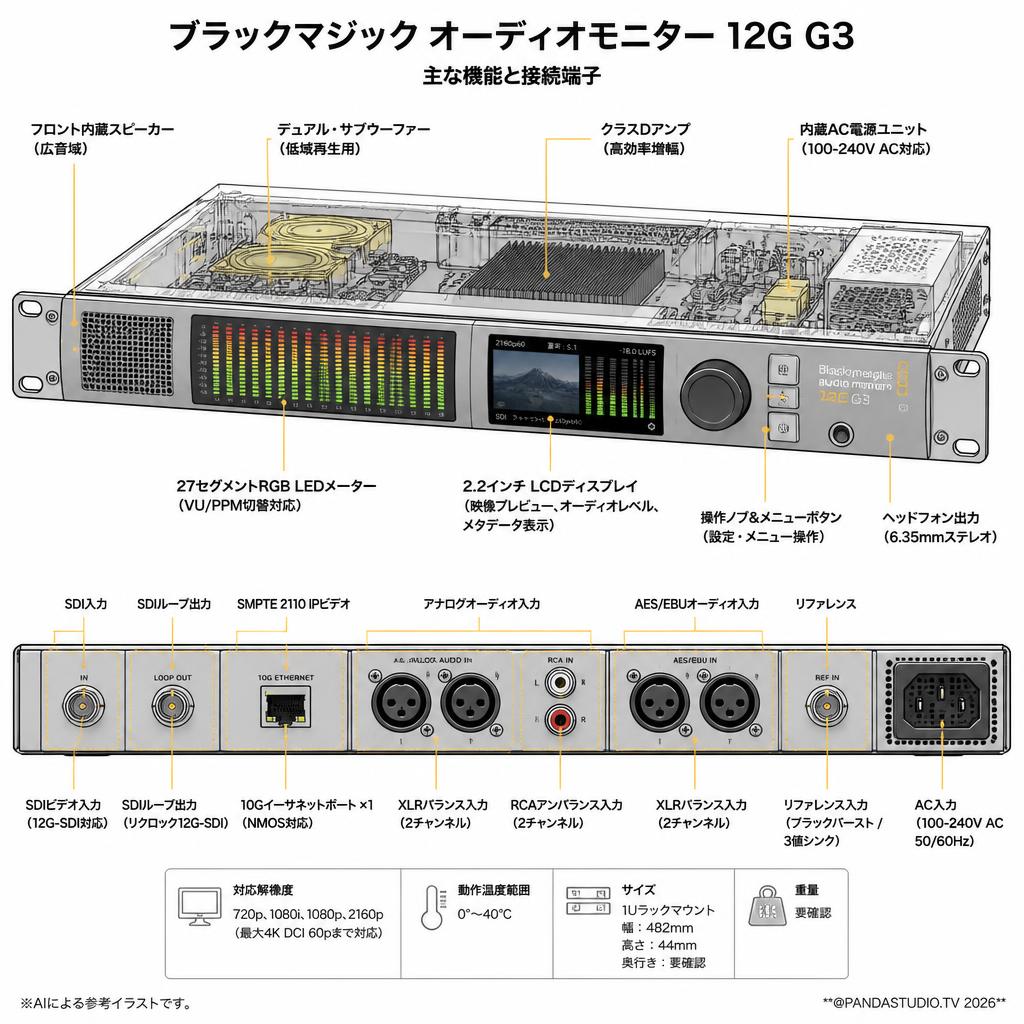

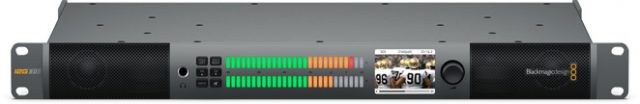

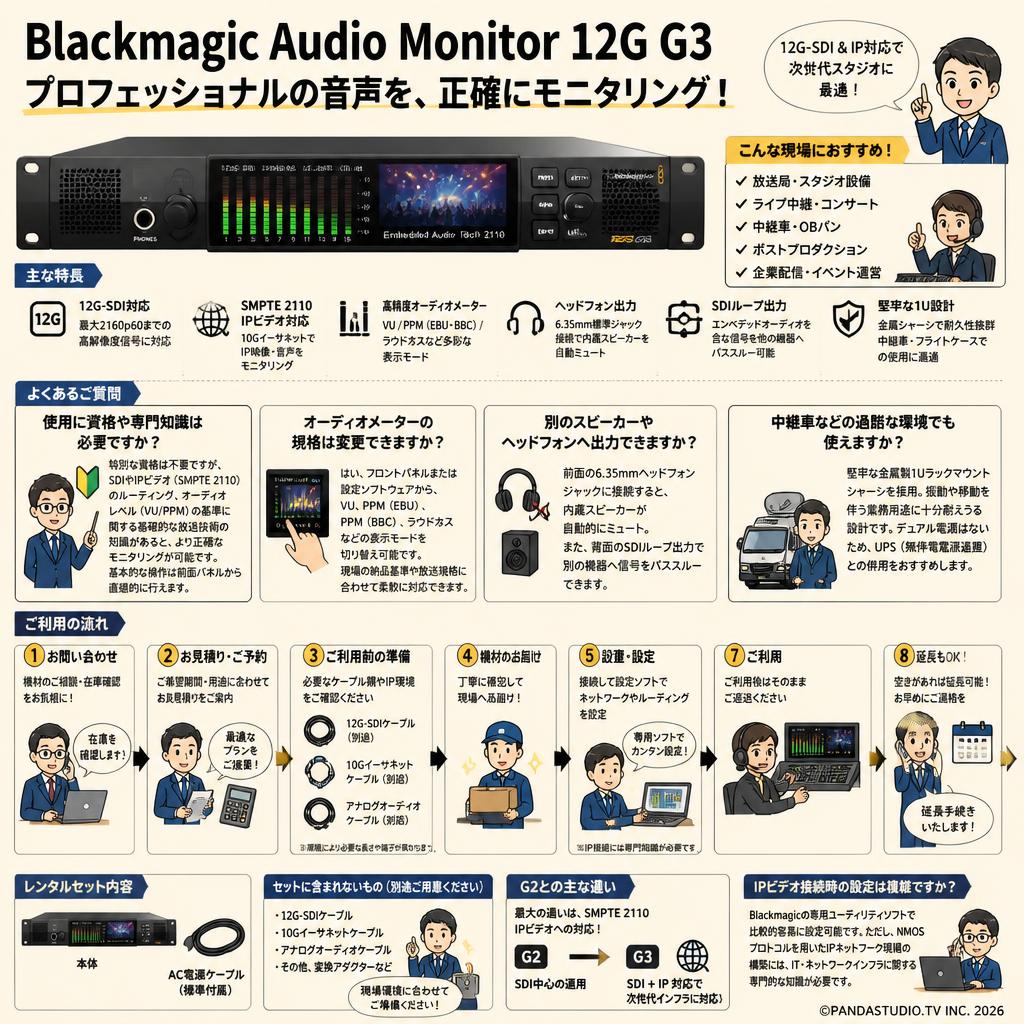

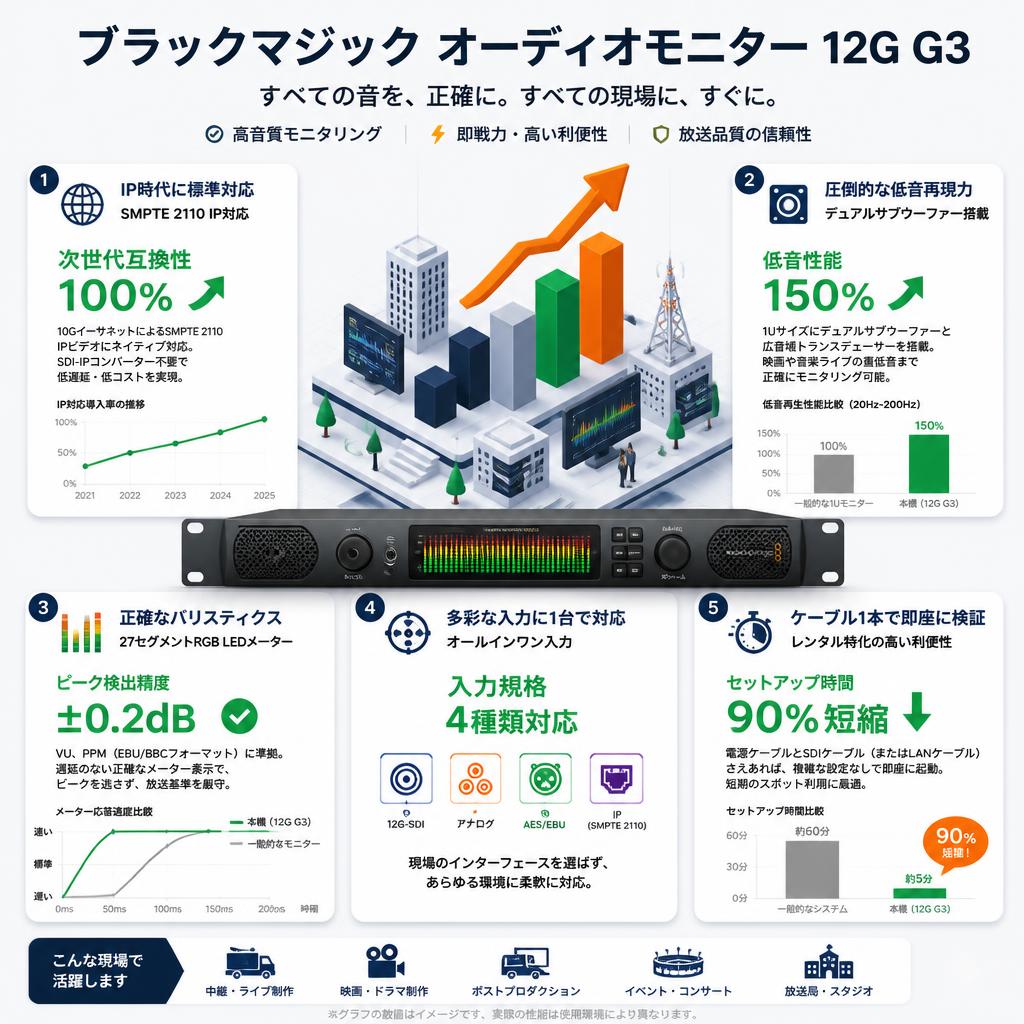

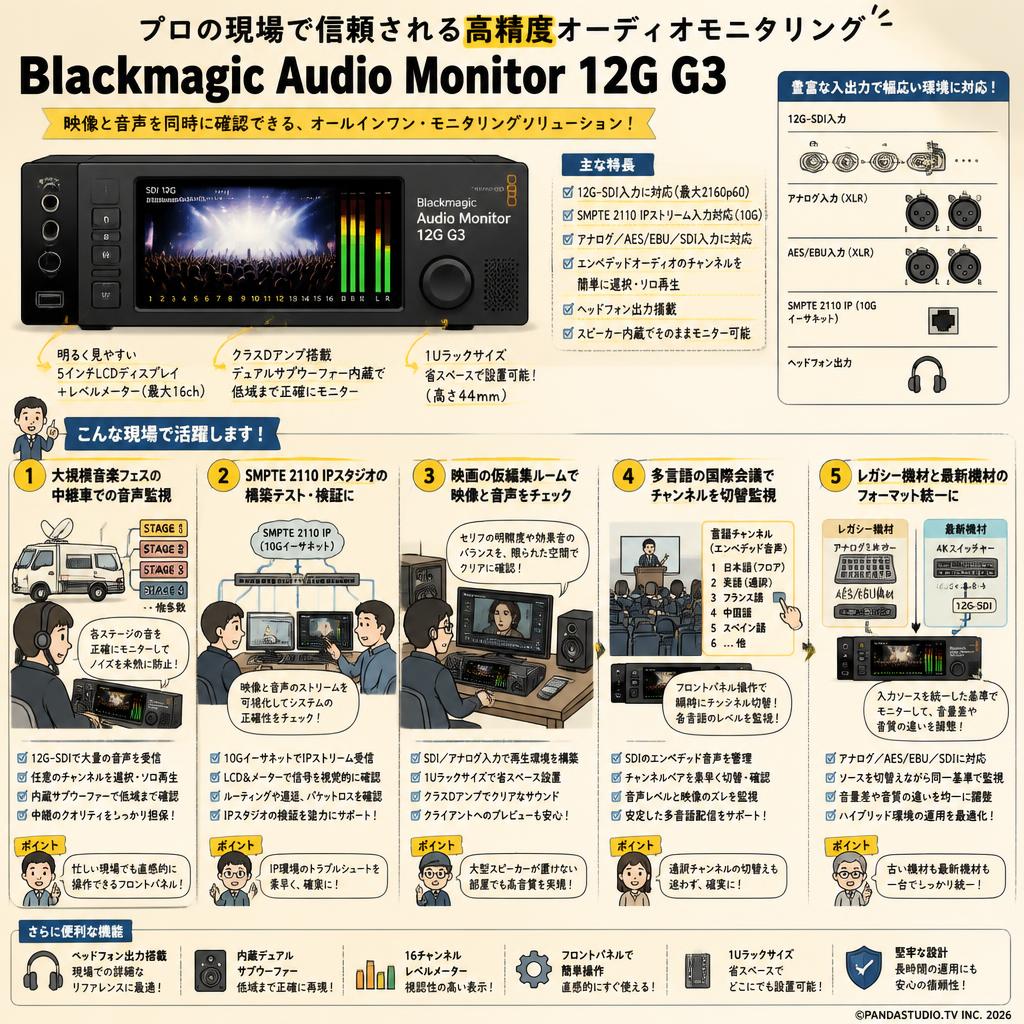

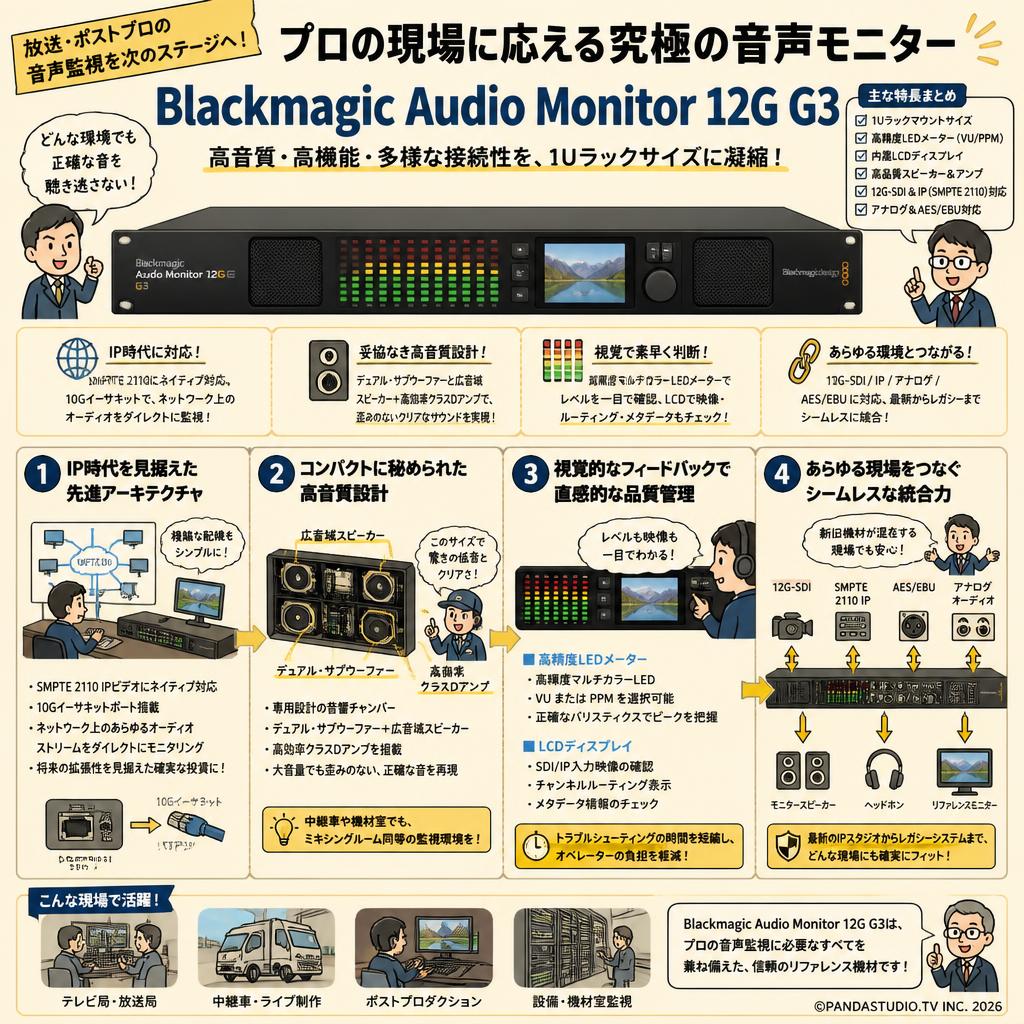

| 接続 |
| SDIビデオ入力 |
１ |
| SDIビデオ出力 |
1 loop out. |
| SDIレート |
270Mb, 1.5G, 3G, 6G, 12G. |
| HDMI2.0ビデオ出力 |
１ |
| 対応マルチレート |
SDI and HDMI are switchable between standard definition, high definition and ultra high definition. |
| SDIビデオループ |
1 x reclocked 10‑bit SD‑SDI, HD‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI. |
| アナログオーディオ入力 |
2 x XLR. 2 x RCA HiFi. |
| アナログオーディオ出力 |
1 x 6.5mm headphone socket. |
| デジタルオーディオ入力 |
1 x XLR. |
| 内蔵スピーカー |
Stereo with 2‑way crossover and independent stereo subwoofers. |
| AES/EBUオーディオ入力 |
2 channels balanced 110Ω AES/EBU via XLR. |
| SDIオーディオ入力 |
16 channels embedded in SD, HD and UltraHD 4K. |
| SDIオーディオ出力 |
16 channels embedded audio loop out. |
| HDMIオーディオ出力 |
8 Channels embedded in SD, HD and 4K. |
| イーサネット |
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates. |
| コンピューターインターフェース |
USB‑C for configuration and firmware updates. |
| Metering |
2 x 27 RGB segment LED VU, PPM or Loudness meters. |
| Modes |
Push button interface allows for input selection, channel selection, independent left and right audio, mute and volume control with scroll wheel. |
| フォーマット |
| SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards
|
720p50、720p59.94、720p60 |
| 1080i50、1080i59.94、1080i60 |
| 1080p23.98、1080p24、1080p25、1080p29.97、1080p30、1080p47.95、1080p48、1080p50、1080p59.94、1080p60 |
| 1080PsF23.98、1080PsF24、1080PsF25、1080PsF29.97、1080PsF30 |
| 2K Video Standards |
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K 23.98PsF, 2K 24PsF, 2K 25PsF |
| Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards |
4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60 |
| SDI Compliance |
SMPTE 259M、SMPTE 292M、SMPTE 296M、SMPTE 424M、SMPTE 425M level AおよびB、SMPTE 2081‑1、SMPTE 2081‑10、SMPTE 2082‑1、SMPTE 2082‑10、SMPTE 2110‑20、SMPTE 2110‑21、SMPTE 2110‑30、SMPTE 2110‑40、SMPTE 2084、SMPTE 2108‑1. |
| SDI Auto Switching |
Automatically selects between SD, HD, 3G‑SDI level A and B, 6G‑SDI and 12G‑SDI. |
| Audio Sampling |
96 KHz and 24 bit. |
| Video Sampling |
4:2:2 and 4:4:4 |
| オーディオメーター |
54 RGB segment LEDs allowing selection of metering with VU, PPM EBU, PPM BBC or Loudness. Includes replaceable level scale. |
| IPビデオ準拠 |
| SMPTE 2110‑20 (Uncompressed Video) |
IGMP v2 |
|
SMPTE 2110‑21 (Traffic Shaping)
|
Sender: Narrow |
| Receiver: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110‑30 (PCM) |
Audio Conformance level: Level C |
| SMPTE 2110‑40 (Ancillary Data) |
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
|
Precision Time Protocol（PTP）
|
IEEE 1588‑2008 (PTP v2) |
| ST 2059‑1 |
| ST 2059‑2 |
|
NMOS IS‑04 Discovery and Registration
|
v1.3.2 |
| Peer‑to-peer via mDNS/DNS‑SD |
| NMOS IS‑05 Connection Management |
v1.1.2 |
| NMOS BCP‑002‑01 |
Natural Grouping |
| NMOS BCP‑004‑01 |
Receiver capabilities |
| Codec |
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. |
| コントロール |
| Built-in Control Panel |
2.2 inch display for viewing video input, video standard and selected audio input. |
| ディスプレイ |
| Display Element |
2.2 inch diagonal color LCD. |
| Display Resolution |
320 x 240. |
| Input Display |
SDI video, format, audio type and audio channels. |
| 電源条件 |
| Power Supply |

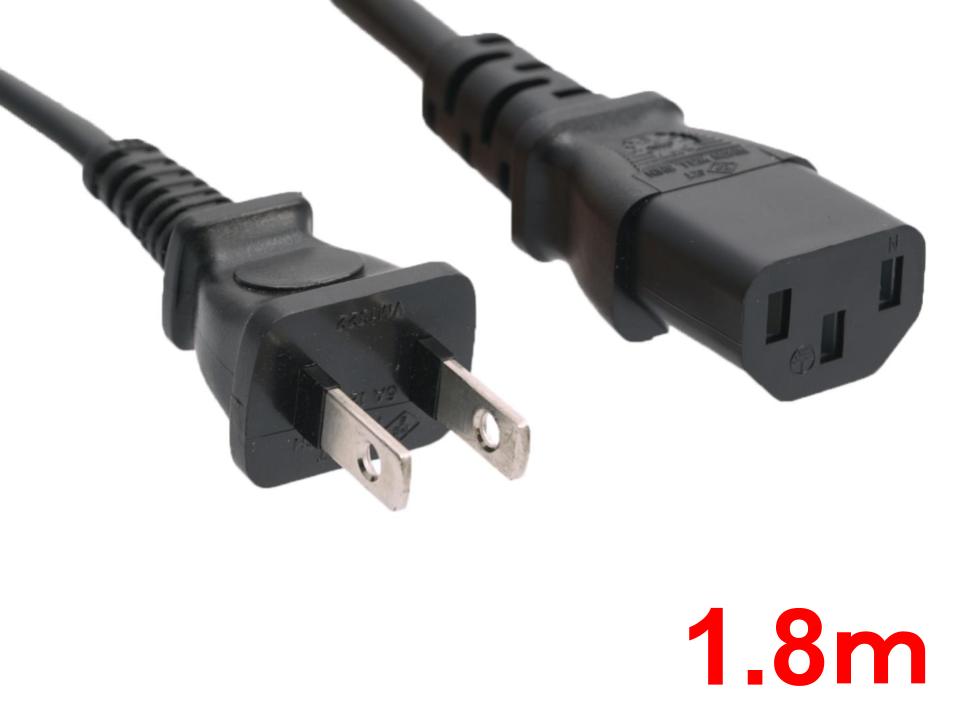

1 x Internal 100 - 240V AC. |
| Power Usage |
55 Watts |
| 作動環境 |
| Operating Temperature |
0° to 40° C (32° to 104° F) |
| Storage Temperature |
-20° to 45° C (-4° to 113° F) |
| Relative Humidity |
0% to 90% non-condensing |
